#101
Jul 29 2016 08:45pm
Quote (ste91 @ Jul 29 2016 07:40pm)
https://s32.postimg.org/bj5ob76c5/pc_case_airflow.png

Hopefully that makes more sense of what I was thinking of doing, each arrow represents where there is a fan, obviously red is exhaust and blue is intake, the wiggly lines are where I expect the air to go, there's nothing really blocking the flow of air, other than the top right corner where the DVD drive is, but that doesn't need cooling anyway, and below that are SSD/HD drives which are horizontal infront of the top front intake, so air flows between them.
The thing at the top left is supposed to be the radiator for the CPU cooler and of course below that is the GPU and then PSU.

Will that setup work or have I missed something?


I'd put the rear as exhaust in that setup.

The whole 'heat rises' is pointless in a PC case. The amount of heat needed for it to be a factor, would fry your PC.
Member
Posts: 105,141
Joined: Apr 25 2006
Gold: 10,475.00
#102
Jul 29 2016 08:49pm
Btw, the air get sucked in to the vid card fans...and most of it, say 85% gets blown out the back of the case. The rest sort of leaks out the sides.



/e That's why vid cards have all the exhaust holes on the back.




This post was edited by Ghot on Jul 29 2016 08:53pm
Member
Posts: 26,107
Joined: Sep 10 2006
Gold: 1,941.44
#103
Jul 29 2016 08:53pm
Quote (Ghot @ 30 Jul 2016 03:49)
Btw, the air get sucked in to the vid card fans...and most of it, sat 85% gets blown out the back of the case. The rest sort of leaks out the sides.


My card blows all of the hot air straight into the middle of the case, I've seen reference GPU's that blow air out of the back, but mine doesn't.
Member
Posts: 105,141
Joined: Apr 25 2006
Gold: 10,475.00
#104
Jul 29 2016 08:54pm
Quote (ste91 @ Jul 29 2016 09:53pm)
My card blows all of the hot air straight into the middle of the case, I've seen reference GPU's that blow air out of the back, but mine doesn't.




What card did you get?


/e I know about reference cards, I own a whole bunch of them. ;)

This post was edited by Ghot on Jul 29 2016 08:55pm
Member
Posts: 26,107
Joined: Sep 10 2006
Gold: 1,941.44
#105
Jul 29 2016 08:56pm
XFX R9 390

Member
Posts: 105,141
Joined: Apr 25 2006
Gold: 10,475.00
#106
Jul 29 2016 08:58pm
Quote (ste91 @ Jul 29 2016 09:56pm)
XFX R9 390




Well yeah. For that one I'd guess about 40% goes out the back, the rest leaks out the sides. :/


/e Still...like Rikuo said, it takes a lot more than that to mess up an AIO cooler. :)

Just do NOT put in as rear intake, that WILL suck IN all the power supply exhaust and w/e does manage to get exhausted out the back of the vid card.

This post was edited by Ghot on Jul 29 2016 09:00pm
Member
Posts: 20,978
Joined: Apr 19 2006
Gold: 85.00
#107
Jul 29 2016 09:01pm
Quote (Rikuo @ Jul 29 2016 09:45pm)
I'd put the rear as exhaust in that setup.

The whole 'heat rises' is pointless in a PC case. The amount of heat needed for it to be a factor, would fry your PC.


Same with the idea of starving a card of air with negative airflow
The suction required pc fans cant produce
Member
Posts: 105,141
Joined: Apr 25 2006
Gold: 10,475.00
#108
Jul 29 2016 09:02pm
Quote (ste91 @ Jul 29 2016 09:56pm)
XFX R9 390




What case did you get? A link please...not a picture or a drawing. ;)
Member
Posts: 26,107
Joined: Sep 10 2006
Gold: 1,941.44
#109
Jul 29 2016 09:02pm

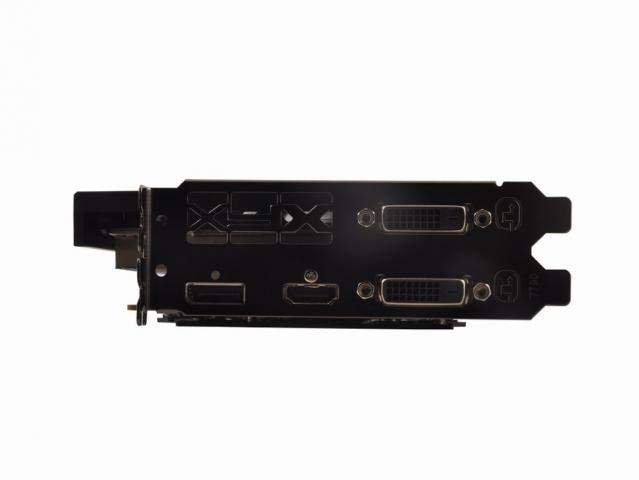

That's the back of my GPU, somehow I don't think much air is getting out of there :lol:
Member
Posts: 105,141
Joined: Apr 25 2006
Gold: 10,475.00
#110
Jul 29 2016 09:03pm


Yeah, I already looked up the vid card.


What CASE did you get?
